Flow Meter Headwall

This headwall is specifically designed for the installation of an Aquamonix Flow Meter. It has a greater depth (2.6m) to aid in the accuracy of the meter.

The headwall can be made as low as 900mm and as high as 3000mm, sleaving up in increments of 150mm.

The sill also can be poured at any height so as to fully invert the pipe and meter.

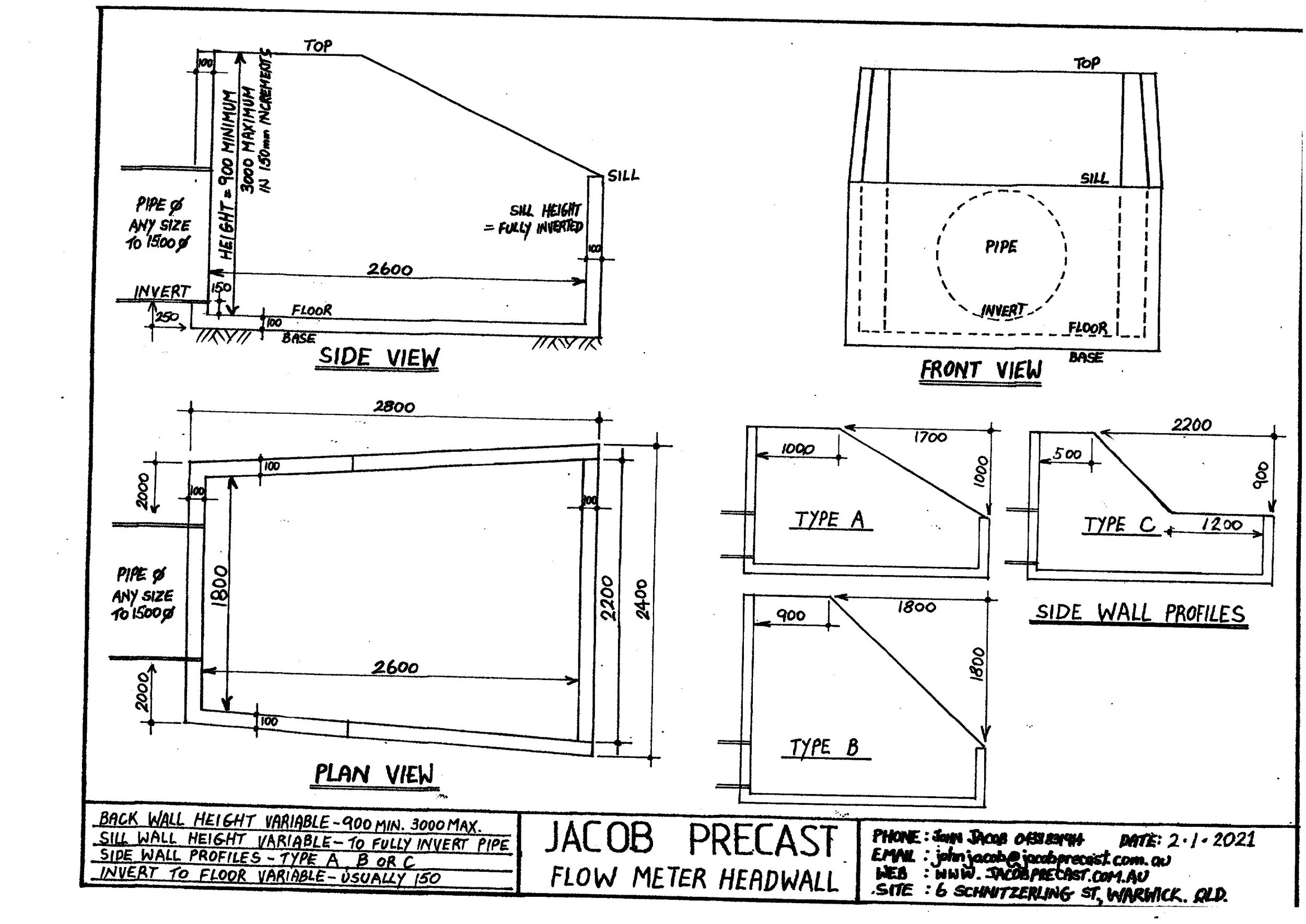

The side walls are available in three different profiles as seen on the plan and we can cast an accurate pipe hole to suit any pipe outside diameter.
